sigrok_iso7816_stream — a passive ISO 7816 sniffer

English | Русский

📢 Project news and updates: website · Telegram channel

Fork of svenso/sigrok_iso7816 with live GSMTAP UDP streaming, making a cheap FX2 logic analyzer (Saleae clone) behave like a SIMtrace2 sniffer:

SIM card ⇄ reader (passive tap on the contacts)
    → FX2 logic analyzer (fx2lafw, 8ch, 24MHz max)
    → sigrok-cli + iso7816 decoder
    → GSMTAP UDP :4729  →  [SIMtrace Analyser](https://github.com/anttro/simtrace-analyser) / Wireshark

SIMtrace Analyser is the recommended tool for visualising live traces and viewing saved captures — it can also import/export GSMTAP pcap files (including the PCAP written by this decoder's pcap_file=<path> option).

Install and start

Both ways install the same decoder — pick one:

• Download (recommended) — a release archive. Nothing to clone and no git history: extract it, run setup, then start. Best if you only want to capture.
• Source checkout — a git clone. The same runtime plus the development material: tests/ and the trace/baseline tools (tools/capture_baseline.sh, tools/compare_baseline.sh, tools/vs_reader.py). Example traces (examples/) are gitignored and stay local in either case. Release archives do not contain tests/, the dev tools or examples/.

Download (recommended)

Grab the latest archive from Releases:

• sigrok_iso7816_stream-<version>.tar.gz — Linux
• sigrok_iso7816_stream-<version>.zip — Windows

Each release also publishes SHA256SUMS, which lists both archives; keep it next to the file you downloaded and verify:

sha256sum -c --ignore-missing SHA256SUMS   # GNU coreutils (Linux)

On Windows run certutil -hashfile sigrok_iso7816_stream-<version>.zip SHA256 and compare the output with the .zip line in SHA256SUMS.

Linux (download)

tar xzf sigrok_iso7816_stream-<version>.tar.gz
cd sigrok_iso7816_stream-<version>
./setup.sh
./start.sh

setup.sh verifies sigrok-cli and the FX2 firmware package (sigrok-firmware-fx2lafw) are installed, symlinks the project directory into ~/.local/share/libsigrokdecode/decoders/iso7816 (user-local decoders shadow system-wide ones), and probes the connected device for its maximum supported samplerate.

Windows (download)

Prerequisites:

1. sigrok-cli Windows installer (0.7.2 x86_64) from sigrok.org/wiki/Downloads — the tested release. Nightly Windows installers are also published on that page; they may change the sigrok-cli syntax or the decoder API, so the 0.7.2 release installer remains the supported version. If sigrok-cli fails to start with error 0xc0150002, install the Visual C++ 2010 Redistributable (msvcr100.dll is required by the bundled Python runtime).
2. fx2lafw firmware ships bundled with the installer — no separate download.

Driver setup (FX2 dongles need WinUSB, the vendor driver won't work):

• Run Zadig, which ships inside the sigrok-cli installation directory (also reachable from the Start menu). Select the FX2 device in its dropdown and install the WinUSB driver.
• After firmware upload the device re-enumerates with a different VID/PID — if it still isn't found, run Zadig a second time for the re-enumerated entry.
• Windows binds drivers per USB port when no serial number is present: moving the dongle to another port may require repeating Zadig.

Then extract the release .zip (right-click → Extract All in Explorer) and run, inside the extracted folder:

setup.bat
start.bat

setup.bat verifies sigrok-cli and bundled firmware, registers this project's decoder via a junction into %LOCALAPPDATA%\libsigrokdecode\decoders\iso7816 (confirmed by sigrok-cli -L listing iso7816), and probes the device's accepted samplerates. The release zip ships the batch files with CRLF line endings, so no conversion is needed. start.bat --help lists its options (the core subset of start.sh: channels, samplerate, clock, host/port, pcap, protocol, debug).

Source checkout

Linux (source checkout)

git clone git@github.com:anttro/sigrok_iso7816_stream.git
cd sigrok_iso7816_stream
./setup.sh
./start.sh

setup.sh performs the same checks and symlink as above.

Windows (source checkout)

The Windows prerequisites (sigrok-cli + the Visual C++ 2010 Redistributable, the bundled fx2lafw firmware, and the Zadig/WinUSB driver setup) are the same as in Windows (download) above.

git clone git@github.com:anttro/sigrok_iso7816_stream.git
cd sigrok_iso7816_stream
setup.bat
start.bat

setup.bat performs the same checks and junction registration as above. start.bat supports the core option subset; the space form is the primary one, and --clk=CH also works (start.bat --help lists them):

start.bat --clk D1 --data D6

Note: batch files need CRLF line endings; the repo enforces this via .gitattributes, so a fresh clone on Windows is already correct (the release zip ships the same CRLF files).

Usage

start.sh captures continuously at 16 MHz until Ctrl+C (rc=130) and streams GSMTAP to 127.0.0.1:4729. Defaults: pins D5=CLK, D0=I/O, D4=RST, D2=VCC. Override via args:

./start.sh --clk=D1 --data=D6          # different wiring
./start.sh --no-rst --no-vcc           # CLK+I/O only
./start.sh --host=10.0.28.7            # stream to a remote analyser
./start.sh --pcap=session.pcap         # also record decoded events to PCAP
./start.sh --debug                     # full decoder + sigrok output (all
                                       # annotation rows + libsigrok -l 4);
                                       # by default only decoded APDUs and
                                       # decoder warnings/errors are shown

On Windows, start.bat takes the same core options (space form; the --opt=value form also works) — see the Windows install notes above.

Wiring

The recommended tap is the short cable with external pull resistors (see The tap in practice below): 10 kΩ to GND on VCC (pulls low when off) and 47 kΩ to VCC on DATA (faster rise to high). Its pin mapping is fixed and known in advance — see the "Pin mapping" table below — and is exactly what start.sh defaults to (D5=CLK, D0=I/O, D4=RST, D2=VCC). No wiring auto-detection is needed; the pins never move.

GND first. Plug GND first and verify it manually (continuity meter or known-good contact) — a missing or loose ground masquerades as every other fault at once: floating lines, phantom start bits, all-zero frames.

Pin mapping

The FX2 clone channels are assigned via -P iso7816:clk=N:data=N:rst=N:vcc=N. The recommended short-cable tap (external pull resistors) uses fixed pins that are exactly start.sh's defaults; --clk/--data/--rst/--vcc remap them if you wire differently:

FX2 channel	SIM contact	Signal
D0	C7	I/O
D2	C1	VCC (digital level only!)
D4	C2	RST
D5	C3	CLK
GND	C5	GND

FX2 input threshold is TTL-ish (~1.4V): 1.8V-class cards may read unreliably; 3V/5V classes are fine.

Clock modes

• native (default) — live captures. The decoder follows the PPS speed switch and re-arms on RST, so warm resets and post-PPS traffic decode correctly.
• detect — for offline experiments or captures without PPS. It does not follow the PPS switch, so post-PPS traffic can be misread.
• sample_as_clock — experimental upstream mode; not recommended for SIM captures.

Troubleshooting live capture

The capture stops early (especially on Windows). A common cause is the wrong USB driver. The Saleae Logic driver works only with Saleae Logic software; sigrok needs the WinUSB driver. Install it with Zadig (bundled with the sigrok-cli installer) and repeat the assignment after the device re-enumerates with the firmware's VID/PID. See the sigrok documentation:

• https://sigrok.org/wiki/Windows#Drivers
• https://sigrok.org/wiki/Fx2lafw

Device not found / no signal. Check the WinUSB driver (Windows), the fx2lafw firmware, the wiring and GND (see Wiring), and try another USB port or a known-good cable. Cheap USB cables and hubs are common causes of stalls.

The capture ends by itself (rc=0). The FX2 is at its USB bandwidth limit at high samplerates. Lower --samplerate, avoid hubs, and close other USB traffic. start.sh automatically restarts the capture on rc=0 (default 20 restarts, 2 s apart; --no-loop, --max-restarts=N, --restart-delay=S). With --pcap=FILE, each restart writes FILE.<N>.<ext>.

start.sh runs until Ctrl+C; keystrokes do not stop it (the "press any key" prompt is disabled). Useful options:

./start.sh --pcap=s.pcap --log=s.log           # record events and the rc= verdict
./start.sh ... --samplerate=24M                # more timing headroom if needed
./start.sh ... --klog                          # also record the kernel journal
./start.sh ... --debug                         # full decoder + sigrok output

• --log records the session-end rc= line.
• The decoder logs SIGNAL INTEGRITY WARNING when ≥ 8 of the last 64 frames fail parity.
• Desynced packets are kept and flagged GSMTAP_FLAG_BAD_FCS in the GSMTAP header res byte — visible in Wireshark as a BAD-FCS warning.

Raw sigrok-cli

Equivalent commands without the wrapper scripts:

# Minimal: CLK+I/O only, live stream to localhost:4729
sigrok-cli -d fx2lafw --config samplerate=12M --continuous \
  -P iso7816:clk=D0:data=D1:clock_option=detect -A iso7816

# Full wiring: CLK + I/O + RST + VCC with line event tracking
sigrok-cli -d fx2lafw --config samplerate=12M --continuous \
  -P iso7816:clk=D5:data=D0:rst=D4:vcc=D2:clock_option=native:rst_detect=true:vcc_detect=true \
  -A iso7816

# Stream to a remote analyser / disable streaming / write PCAP file
... -P iso7816:...:gsmtap_host=10.0.28.7 ...
... -P iso7816:...:gsmtap_enable=false ...
... -P iso7816:...:pcap_file=trace.pcap ...

# Classic upstream mode: binary PCAP to stdout
sigrok-cli -i capture.sr -P iso7816:clk=2:data=0 -B iso7816=pcap > out.pcap

The tap in practice

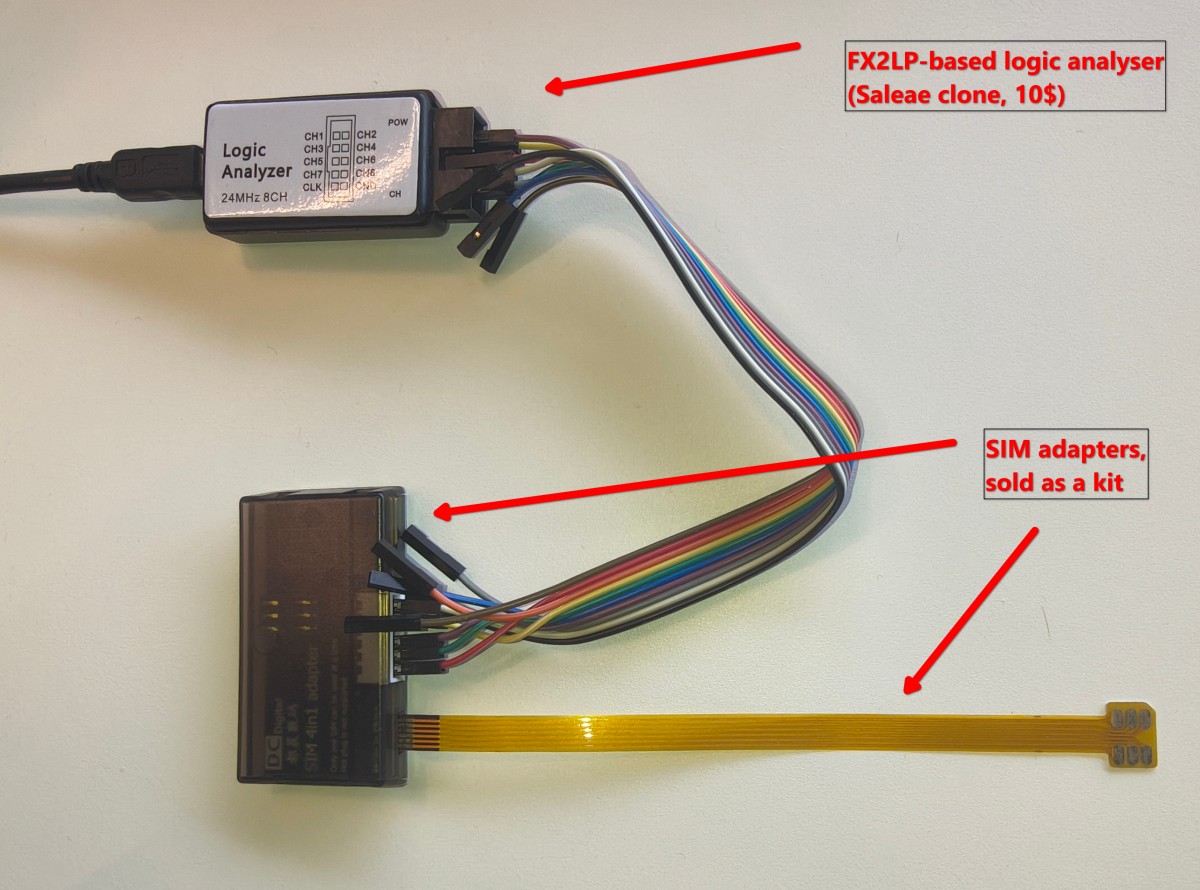

Components used in the build

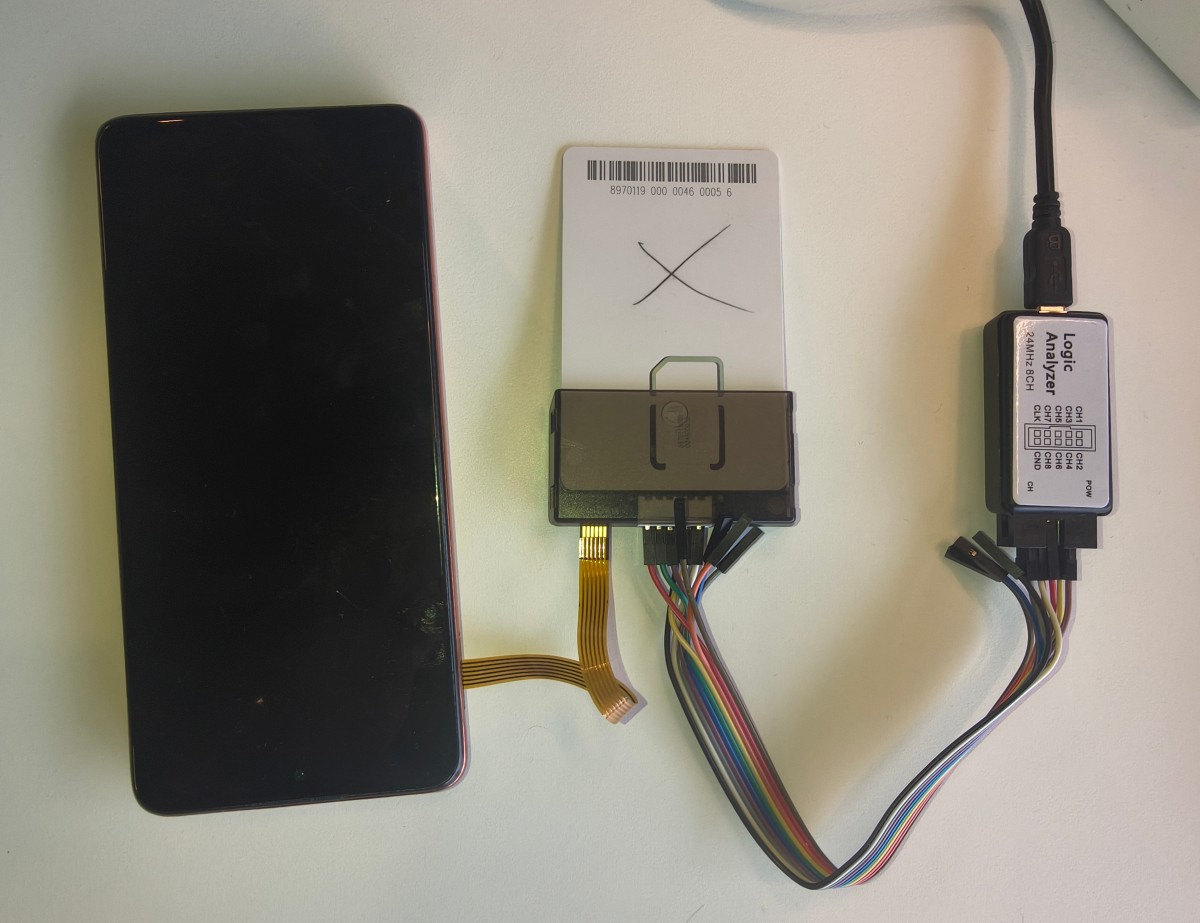

The rig tapping a phone SIM session

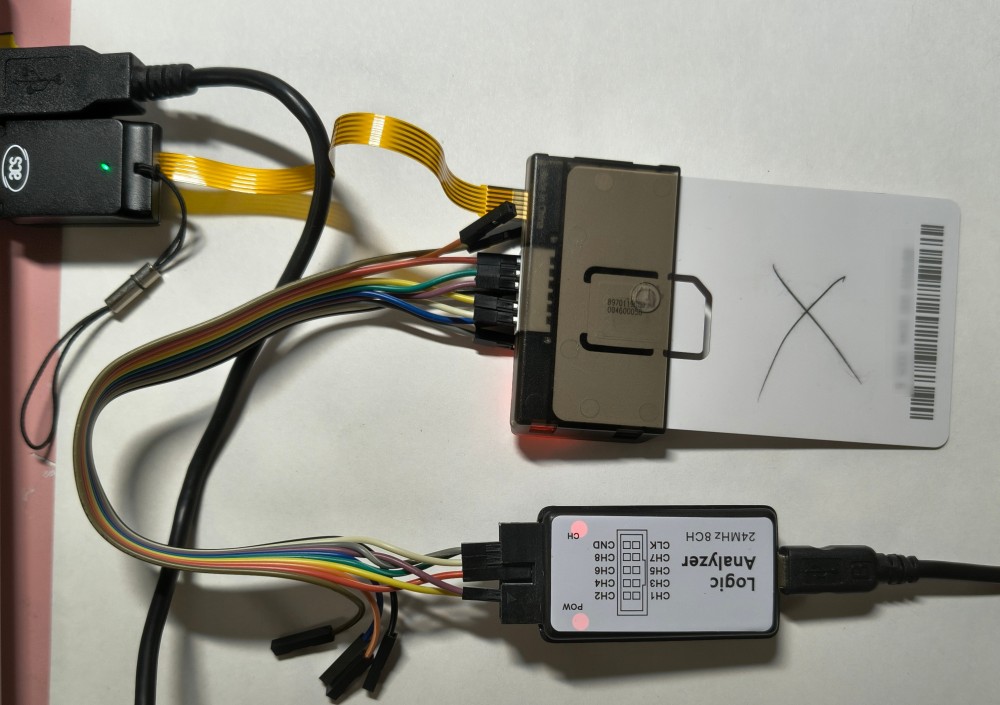

The rig tapping a card-reader session

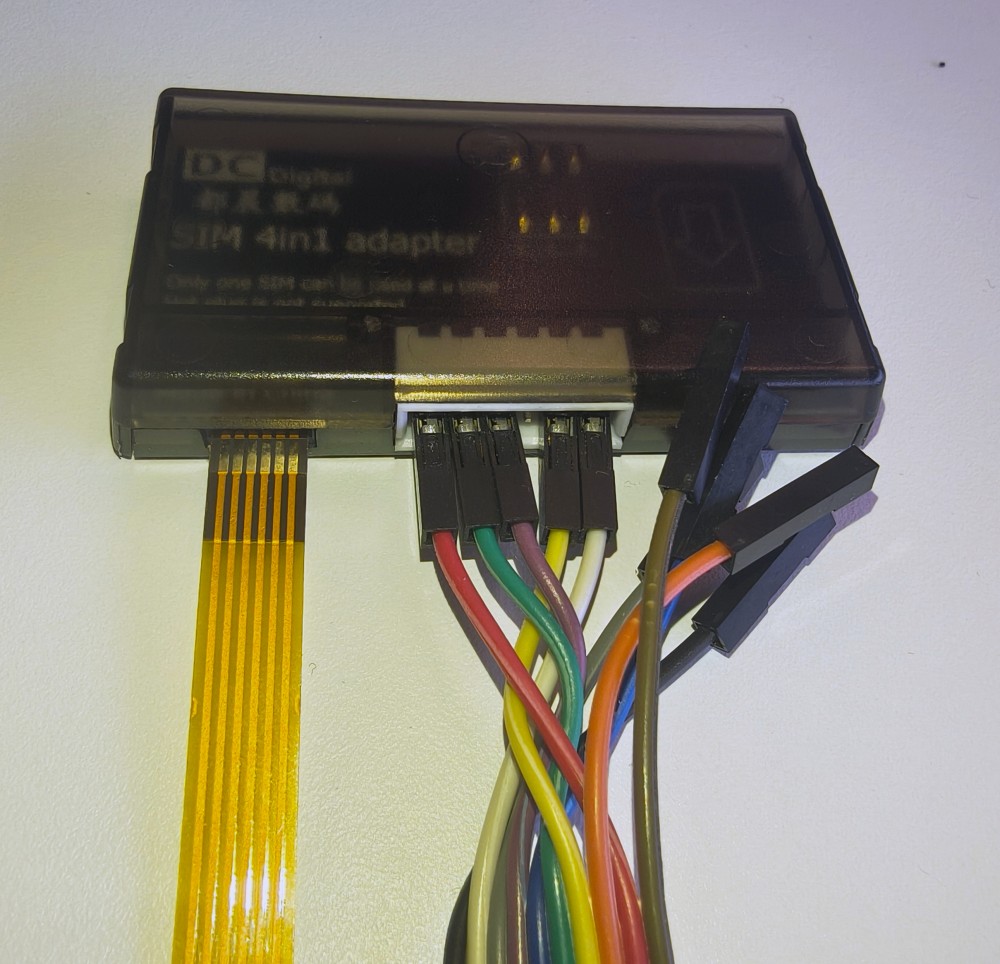

The SIM-tap adapter

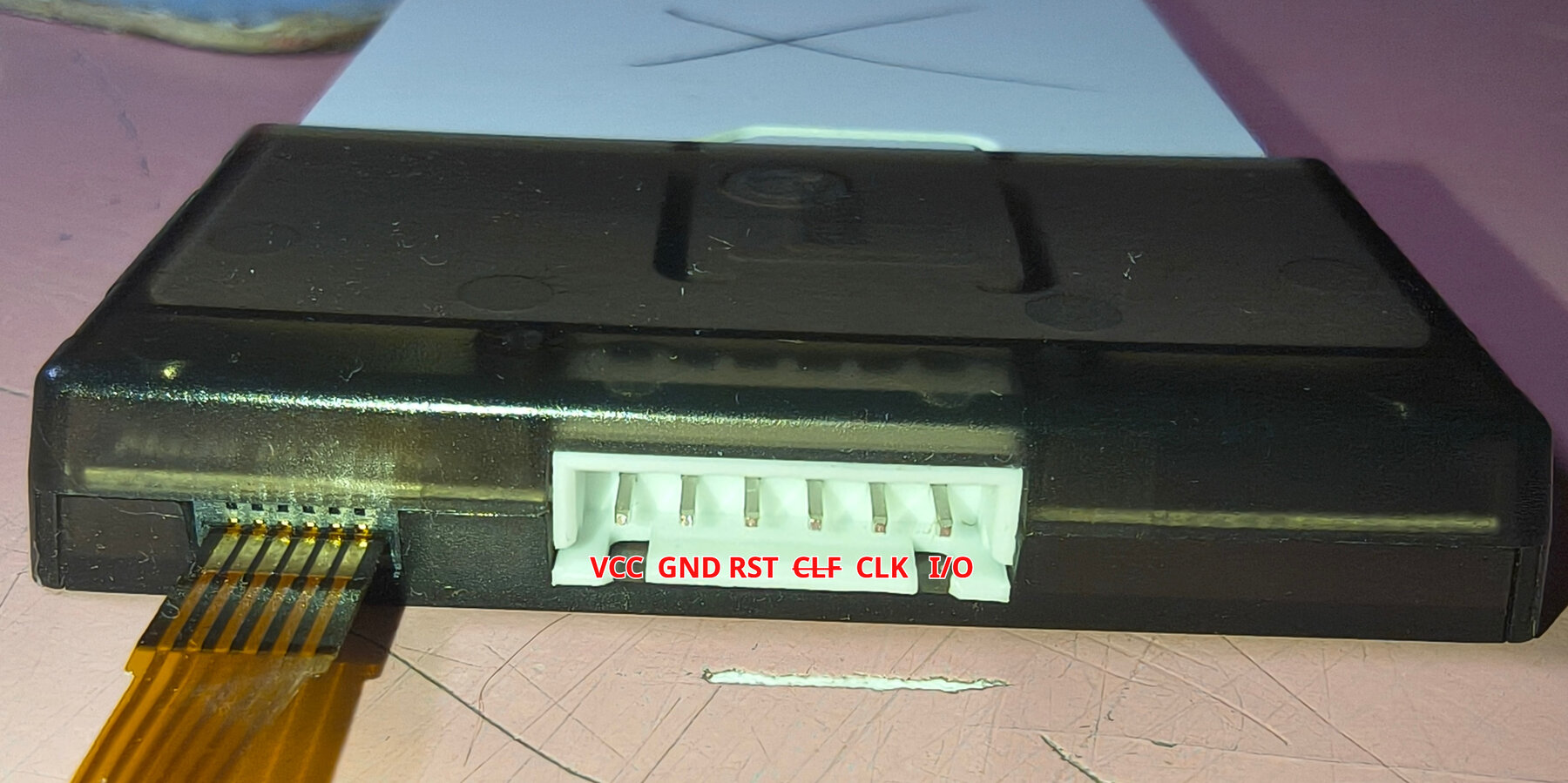

Tap wiring on the SIM contacts

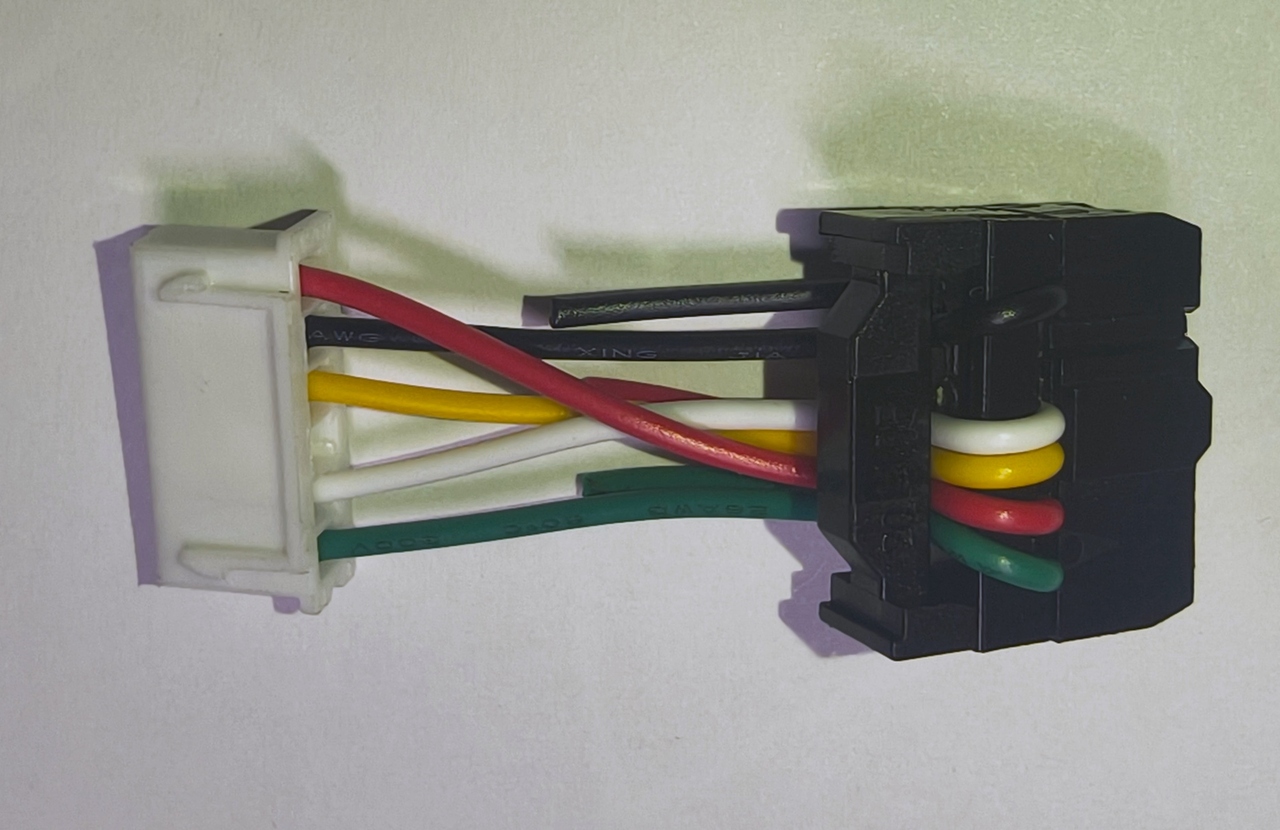

The short-cable tap — reduces loop area and rise-time artifacts

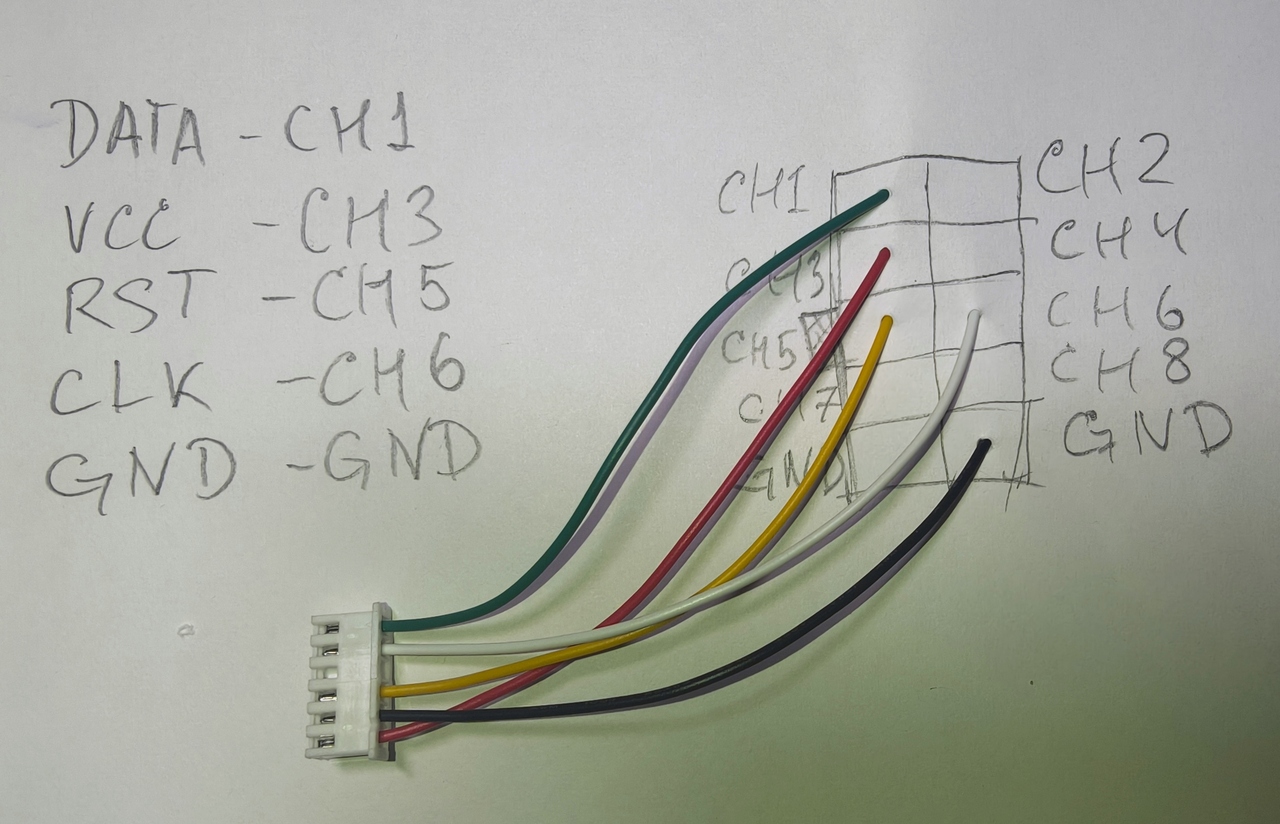

Short-cable wiring detail

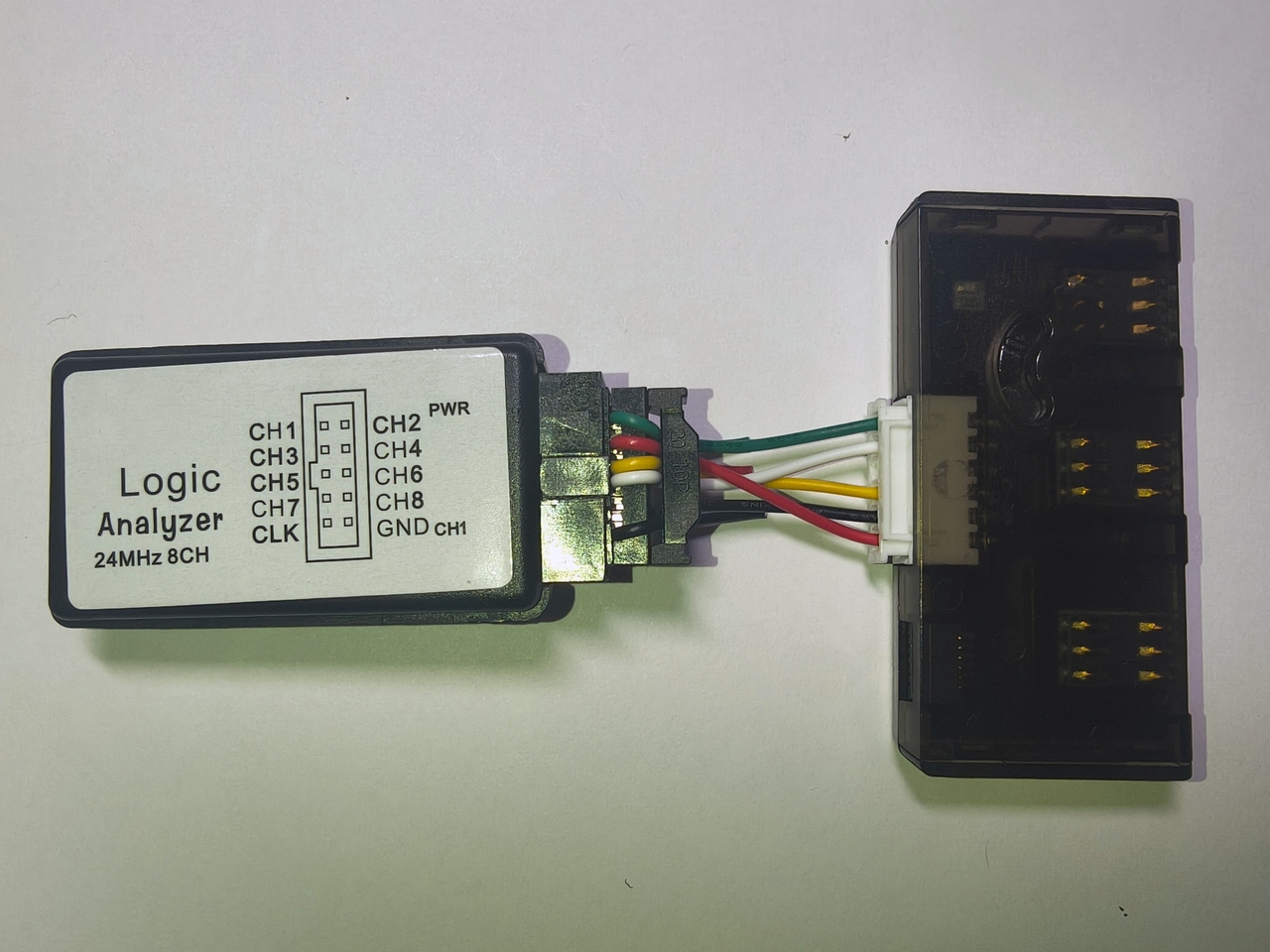

Short cable with the breakout gear

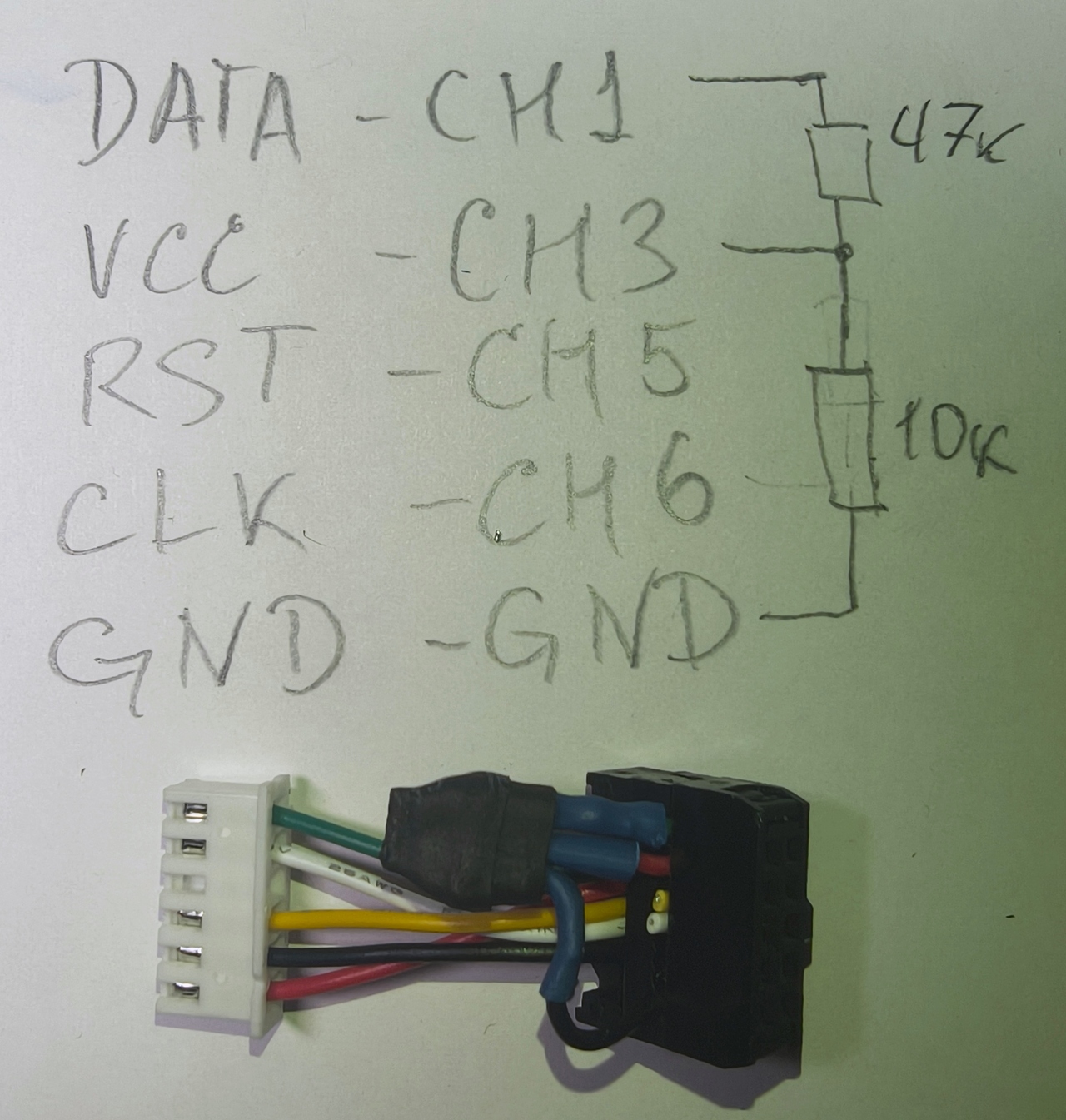

Short cable with external pull resistors — 10 kΩ to GND on VCC (pulls low when off), 47 kΩ to VCC on DATA (faster rise to high)

Features

Feature	Description
Live GSMTAP stream	Every decoded event is sent as a GSMTAP-SIM UDP packet (default on, mimics simtrace2-sniff)
Correct sub_types	ATR=0x01 and PPS=0x02 are tagged properly in PCAP output
ATR/PPS in PCAP	ATR and combined PPS request+response are emitted as PCAP packets
RST tracking (optional)	rst_detect=true: emits reset assert/deassert events (sub_type 0x10)
VCC tracking (optional)	vcc_detect=true: emits power on/off events (sub_type 0x11)
Direct PCAP file	pcap_file=<path> writes PCAP without shell redirection
Start-bit deglitch	Suppresses sub-ETU LOW glitches (2 samples at 16 MHz, scaled to the samplerate)
Mid-session ETU lock	Recovers the ETU from DATA for captures without a usable CLK; a rate that fails parity is re-measured
ATR / resync guards	Validates the ATR, ignores mis-framed ATR candidates, and re-aligns after a desync
Inverse convention	Supports direct (TS=0x3B) and inverse (TS=0x3F) cards
T=1 blocks	Decodes NAD/PCB/LEN/INF/LRC with M-bit chaining; the I-block INF is emitted as the APDU
Parity flag	Packets containing a parity-error byte are flagged GSMTAP_FLAG_BAD_FCS
Rate-aware thresholds	Deglitch, guard and ETU floors scale with the capture samplerate

Decoder options

Option	Default	Description
clock_option	native	native, detect, sample_as_clock (see upstream FAQ)
protocol	auto	auto, T=0, T=1
gsmtap_enable	true	Live GSMTAP UDP streaming
gsmtap_host	127.0.0.1	GSMTAP destination host
gsmtap_port	4729	GSMTAP destination port
pcap_file	(empty)	Write PCAP to this file in addition to binary output
rst_detect	false	Track RST pin events (requires the rst channel to be assigned)
vcc_detect	false	Track VCC pin events (requires the vcc channel to be assigned)

Channels: clk, data (required); rst, vcc (optional — assign only when the corresponding wire is physically connected).

GSMTAP events

GSMTAP header: version 2, type SIM (0x04), UDP port 4729.

sub_type	Name	Payload
0x00	APDU	raw T=0/T=1 packet bytes
0x01	ATR	raw ATR bytes
0x02	PPS request	raw PPS request bytes
0x03	PPS response	raw PPS response bytes
0x10	RST event (custom)	[direction, level, flags, clk_hz_be32] — CLK frequency appended when known
0x11	VCC event (custom)	[direction, level, 0x00]

Event payload byte semantics:

• RST: direction 1 = reset asserted (high→low), 0 = deasserted (low→high); level = line level after the transition.
• VCC: direction 1 = power applied (low→high), 0 = removed (high→low); level = line level after the transition.

0x00-0x03 match libosmocore's gsmtap.h: standard values and payloads (PPS request and response are emitted as separate packets). 0x10/0x11 are custom extensions not defined in libosmocore's gsmtap.h.

RST events carry the measured CLK frequency when it is known: flags bit 0 is then set and the frequency follows as a big-endian uint32 in Hz (7-byte payload). When the rate is not yet measured the payload stays 3 bytes, so consumers that read only the first two bytes are unaffected. Combined with the F/D negotiated in the ATR/PPS, the data rate is clk_hz × D / F bits/s.

Header extensions: flags such as GSMTAP_FLAG_BAD_FCS are written into the header res byte, which official gsmtap.h marks reserved (RFU). This carriage is this decoder's own extension (upstream simtrace2-sniff never sets res); the flag semantics mirror simtrace2's per-message USB data flags and are not part of the libosmocore spec.

RST/VCC detection notes and limitations

• Events are detected asynchronously before the first ATR (power-on / reset release are captured once the level is stable) and at packet boundaries between T=0/T=1 packets afterwards.
• Edges occurring entirely within a packet transfer are observed as a net level change at the next boundary; short pulses inside a packet can be missed.
• VCC is digital-only: the decoder sees powered/not-powered, never the voltage class (1.8/3/5V).
• RST and VCC use level-stability hysteresis at 10 ms (samplerate-scaled): a new level is reported only once it has been continuously stable for ≥ 10 ms. This makes power-up and power-down symmetric and suppresses ringing and short glitches.
• VCC events are generally unreliable — prefer not to track VCC. A floating or unconnected VCC sense pin reads HIGH at all times (logic-high with no load), so the decoder sees "powered" constantly and emits spurious power events on every bounce. Unless your tap derives VCC from a clean, loaded source, it is better to leave the vcc channel unassigned (do not pass --vcc) and keep vcc_detect=false; RST tracking is usually enough to see resets. Only enable VCC tracking on a tap with a solid VCC sense (and a solid GND — see wiring notes).
• Unassigned optional channels are ignored even if rst_detect/vcc_detect is enabled (guarded via has_channel()).

Development and testing

The decoder is validated against example captures with tools/vs_reader.py. Trace fixtures are kept locally and are not part of the repository.

Validation against the reader SDK (tools/vs_reader.py)

On a controlled rig (PC/SC reader driven by software) the reference APDU log from the reader SDK can be diffed against the decoded PCAP:

sigrok-cli -i <trace>.sr \
  -P iso7816:clk=D5:data=D0:rst=D4:vcc=D2:clock_option=native:rst_detect=true:vcc_detect=true:gsmtap_enable=false:pcap_file=out.pcap \
  -A iso7816
python3 tools/vs_reader.py <reader-log>.log out.pcap

vs_reader.py aligns each reader-log exchange to the capture APDUs (byte-exact LCS match) and classifies the leftovers as proactive/CAT (unseen by the reader SDK), pre-capture/dropped, or garbage.

Cold-boot captures (capture starts before power-up)

When the capture starts before power-up, RST is still low at sample 0. Use rst_detect=true and protocol=T=0; the decoder arms the ATR hunt on the initial RST level and decodes the full ATR. Example:

sigrok-cli -i <coldboot>.sr \
  -P iso7816:clk=CLK:data=DATA:rst=RST:vcc=VCC:clock_option=native:protocol=T=0:rst_detect=true:vcc_detect=true:gsmtap_enable=false:pcap_file=out.pcap \
  -A iso7816

Capture scenarios: reader (constant CLK) and phone (Clock Stop Mode)

• Reader / constant-CLK capture — the reader drives a steady CLK for the whole session. Validate it against the reader SDK with tools/vs_reader.py <reader-log>.log out.pcap.
• Phone / gated or stopped-CLK capture — the phone gates or stops CLK between transfers (Clock Stop Mode), so the ETU cannot be derived from CLK. Run with protocol=T=0; the decoder recovers the ETU from the DATA line and decodes with the edge-list reader. T=0 case 3/4 commands (e.g. 80 12/80 14 STK envelopes) are consolidated into one command→response APDU.

Recommended invocations:

# Reader capture (controlled rig, CLK always running)
sigrok-cli -i <trace>.sr \
  -P iso7816:clk=CLK:data=DATA:rst=RST:vcc=VCC:clock_option=native:rst_detect=true:vcc_detect=true:gsmtap_enable=false:pcap_file=out.pcap \
  -A iso7816
python3 tools/vs_reader.py <reader-log>.log out.pcap

# Phone capture (mid-session, gated/stopped CLK)
sigrok-cli -i <phone>.sr \
  -P iso7816:clk=CLK:data=DATA:rst=RST:clock_option=native:rst_detect=true:vcc_detect=false:protocol=T=0:gsmtap_enable=false:pcap_file=out.pcap \
  -A iso7816

Data rates and ETUs

Reference values observed on the example captures at a 16 MHz samplerate:

Trace	CLK mode	ETU (samples)	CLK/ETU	Convention	Notes
test_8	constant	~43	372 (standard)	Direct	PC/SC reader, ATR+PPS+APDUs
test_7	constant	~43	372 (standard)	Direct	PC/SC reader, warm resets
xiaomi	gated/stopped	~53	recovered from DATA	Direct	Phone, mid-session
samsung	gated/stopped	~72	16 (F=512/D=32)	Direct	Phone, non-standard F/D, STK menu
alcor_reader	constant	~53	16 (F=512/D=32)	Direct	PC/SC reader, CLK 4.0 MHz at ATR -> 4.8 MHz after PPS

The decoder auto-detects the ETU and selects the bit reader (CLK-sync for constant CLK, edge-list for gated/stopped CLK). No manual configuration is needed beyond clock_option=native and protocol=T=0 for phone captures.

Parity is even per TS 102 221 ("an even number of bits set to '1' including the parity bit"); frames failing the check are flagged as CHKSUM ERROR but still decoded.

Related tools

SIMple, SIMtrace Analyser and sigrok_iso7816_stream are three standalone tools for working with SIM/UICC cards, published together on the same website and news channel. Each one is fully independent — install only the tools you need:

• SIMple — a UICC workbench: APDU construction, SCP80/SCP81 OTA, SIM Toolkit simulation and card profiling.
• SIMtrace Analyser — an APDU trace analyser for GSMTAP-SIM captures.
• sigrok_iso7816_stream — a passive ISO 7816 sniffer built on a cheap FX2 logic analyser.

License

GPL-2.0+, same as upstream.
